Temperature Transmitter
WTT100
Features
- Chemical processing plants, refineries, and petrochemical facilities.
- Food and beverage industry, including in brewing, distilling, and baking applications.
- Pharmaceutical manufacturing, including in drug production and storage.
- HVAC systems, including in buildings, hospitals, and laboratories.

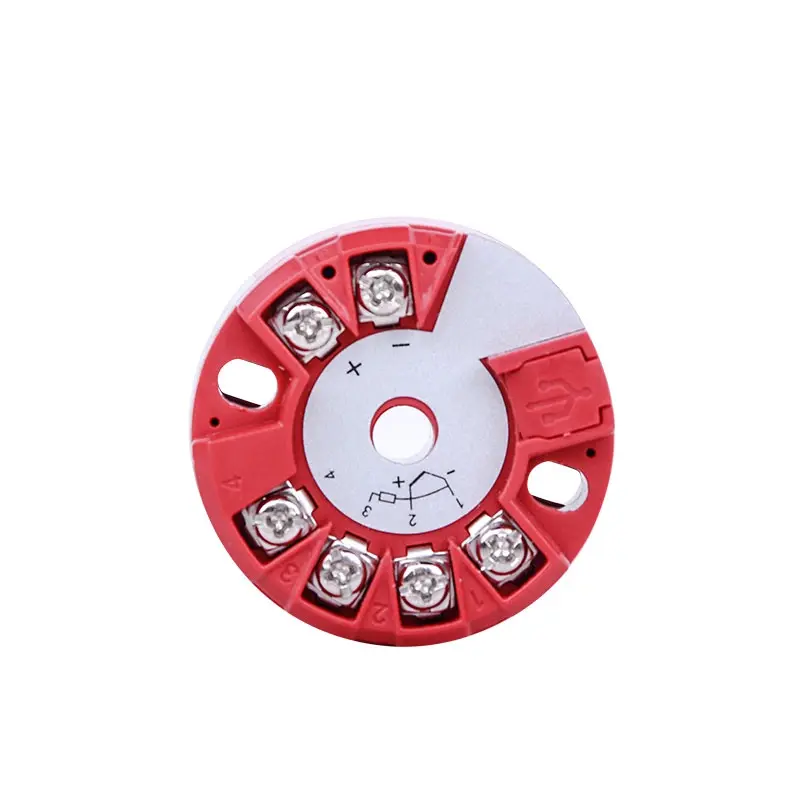

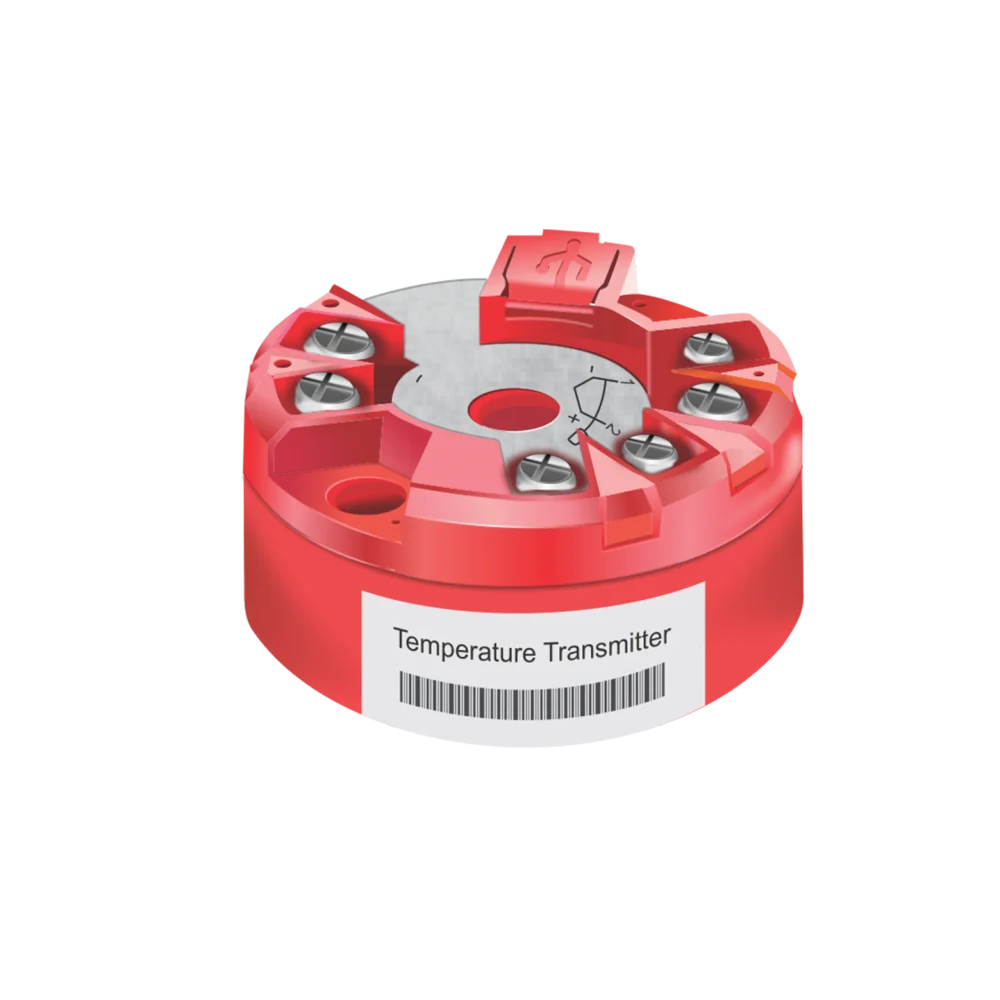

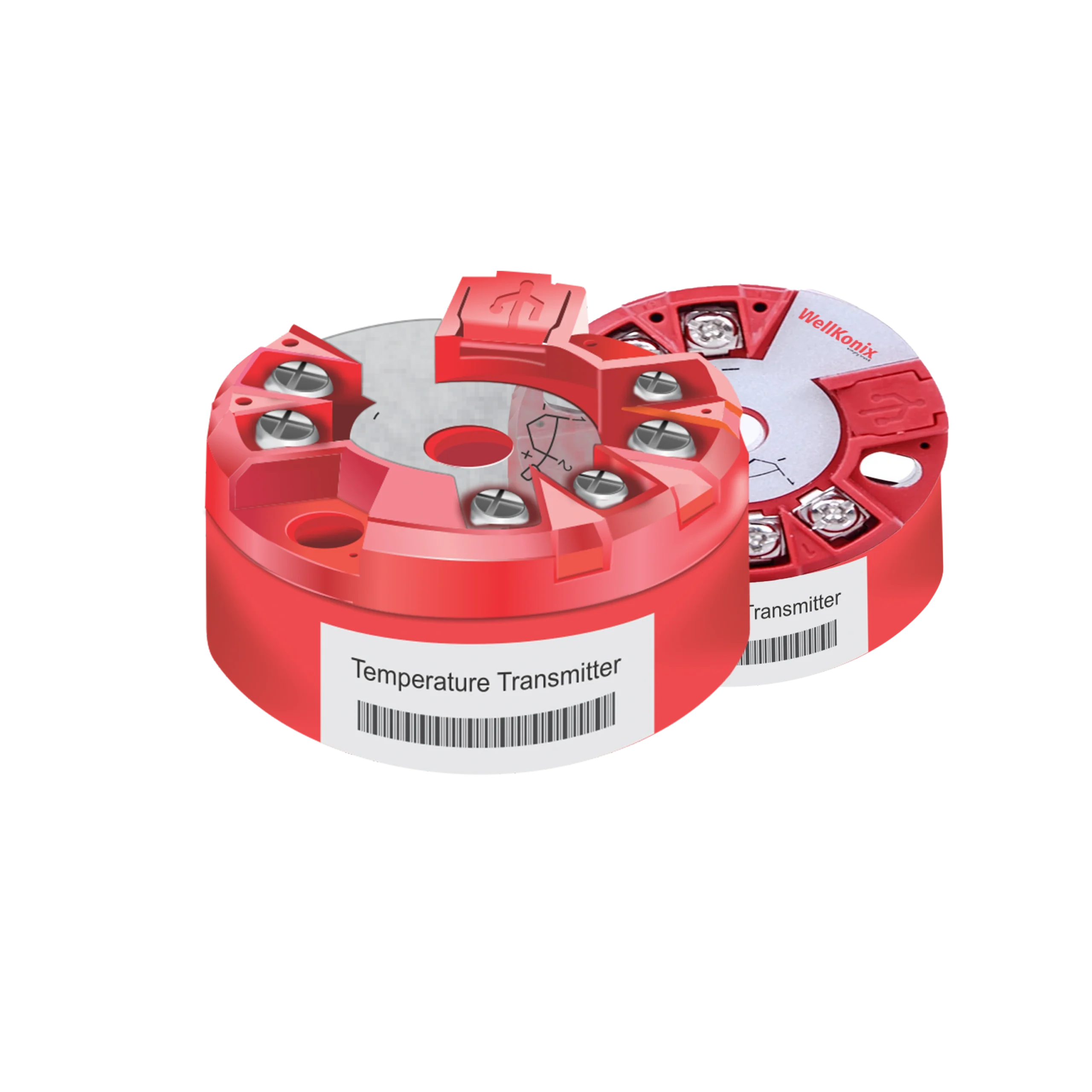

WTT100 Head Mounted Smart Temperature transmitter can be used with multiple sensor type [Resistance Thermometer(RTD),Thermocouple (TC)] inputs, is simple to install with improved measurement accuracy over wire-direct solutions.
01
Introduction of Temperature transmitter programmable
Many different industries utilize temperature transmitters extensively for applications involving temperature measurement and control. Compared to other temperature monitoring devices, they have a number of benefits, including excellent accuracy and dependability. The following are some of the main characteristics and benefits of temperature transmitters: High precision: Temperature transmitters provide extremely precise temperature readings, frequently with an accuracy of ±0.1°C or higher. Remote sensing: Temperature transmitters can be utilized in dangerous or difficult-to-reach locations since they can detect temperatures remotely. Digital communication: It is simple to integrate temperature transmitters with process control systems because to the availability of digital communication protocols including Profibus, Foundation Fieldbus, and HART. Self-diagnostic features: Certain temperature transmitters are equipped with self-diagnostic features that can identify problems like sensor drift or signal deterioration and notify operators of possible issues before they become serious ones. Flexibility: Temperature transmitters can be employed in a variety of settings, such as severe ones or ones that call for a high degree of precision or accuracy.
02
Standard for a Temperature Transmitter
Petrochemical facilities, refineries, and chemical processing plants. uses in the food and beverage sector, including as baking, distilling, and brewing. manufacturing of pharmaceuticals, including the creation and storage of drugs. HVAC systems, such as those found in hospitals, labs, and buildings. measurement and regulation of temperature in boilers and turbines used in power plants. Temperature transmitters are designed and manufactured according to various international and industry standards to ensure accuracy, reliability, and safety in different applications.
03
Features of Temperature Transmitters
High Accuracy – Provides precise temperature measurement with an accuracy of ±0.1°C or better. Remote Sensing Capability – Enables temperature measurement in hazardous, confined, or hard-to-reach locations. Digital Communication – Supports HART, Foundation Fieldbus, and Profibus protocols for seamless integration with process control systems. Self-Diagnostic Functionality – Detects sensor drift, signal degradation, and other potential issues, ensuring proactive maintenance. Versatile Application – Suitable for diverse industrial applications, including chemical plants, refineries, food processing, and pharmaceuticals.
Temperature Transmitter Calibration
During temperature transmitter calibration process, the sensor is changed with the aid of using a tool that produces various resistances. A unique tool is used for calibration, which could simulate RTDs and Thermocouples. Calibration gadgets are programmed the usage of a unique software, linked to a laptop through a USB. These calibration devices are programmed using dedicated software, which is connected to a laptop via USB for real-time data logging and adjustments. The software allows for automated testing, recording of calibration results, and configuration of transmitter settings to meet industry accuracy standards. This method ensures that temperature transmitters provide reliable and precise measurements in industrial applications.
Technical Specification
Model
WTT100
Input signal
RTD/TC
Cold-junction compensation
temperature scope
-20~60℃
Output signal
4-20mA
Load resistance
RL≤(U-10)/0.021
Output current of upper and
lower limit overflow alarm
IH=21 mA, IL=3.8 mA
Power supply
(12-40)VDC
Response time
Reach to 90% of the final value for 1s
Used environmental temperature
-40~80℃
Storage temperature
-40~100℃
Vibration resistance
4g/2~150Hz
Electromagnetic compatibility
Conform to GB/T18268 industrial equipment
application requirements(IEC 61326-1)
Screen size
2.8inch
Dimension
Overall dimension: 100mm*100mm*150mm(H*W*D)
Cutout dimension：92.5mm*92.5mm(H*W)
Applications
Heating and Cooling Reactors
Disinfecting and
Sterilizing
Waste Heat Recovery Boilers
Dyeing WasteWater
Exhaust Gas Treatment
content.
Fertigation System
